This tech note describes how to trouble shoot issues with power input to the Rapidlogger System’s.

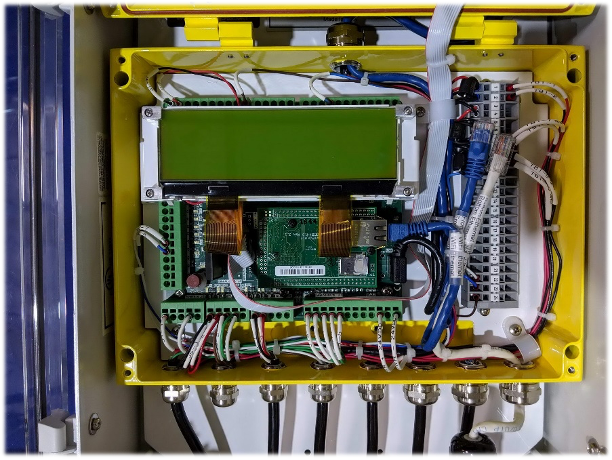

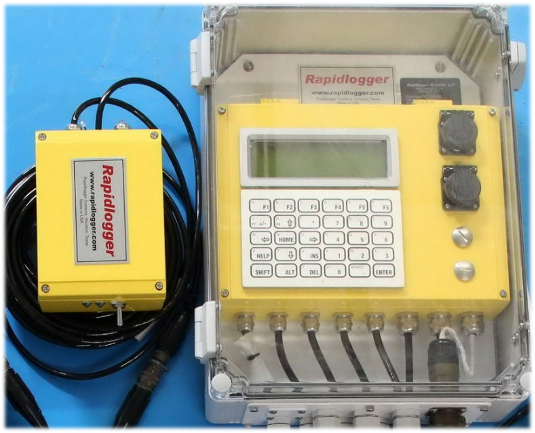

This tech note applies to both the Standard and the Small Rapidlogger Units. Open the Lid to the Rapidlogger Unit. Turn on the Power to the unit.

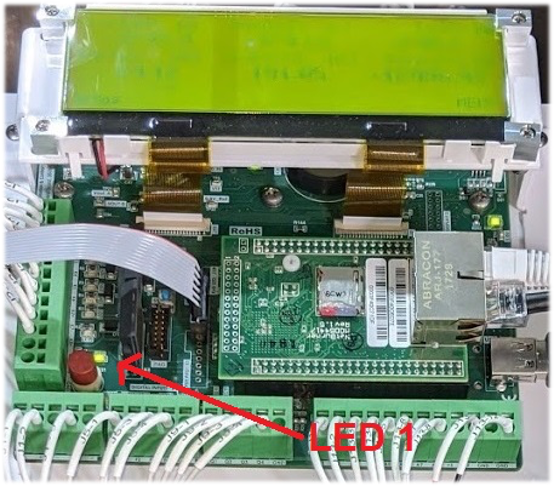

Look inside if there are many LEDs lit up then there is power coming in to the unit. If there is only one LED (LED 1) lit and all others are dark then the red colored fuse is blown. You can identify the LED 1 circled in the image below.
If this LED (LED1) is not lit up then there is no power being supplied to the unit and the power supply may have a problem.
Replacement Fuse
The part number for a replacement fuse is below
Manufacturer: Littlefuse
Part Number: 37411000410
Alternate Manufacturer:
Bel Fuse Inc
Part Number: 0691-1000-01
Rating: 1Amp (500mAmp can also be used)
Suppliers: Mouser.com, Digikey.com, Newark.com, rs-online.com
