Rapidlogger Products - Accelerometer with Filtering Electronics

Applications

The Rapidlogger Filtered Accelerometer has been designed to simplify the interface to piezo crystals to data acquisition systems.

Highlights

Designed to work with DC power from 11 thru 28VDC, it has integrated filtering electronics to convert piezo element signals to frequency signals compatible with most industrial DAQs.

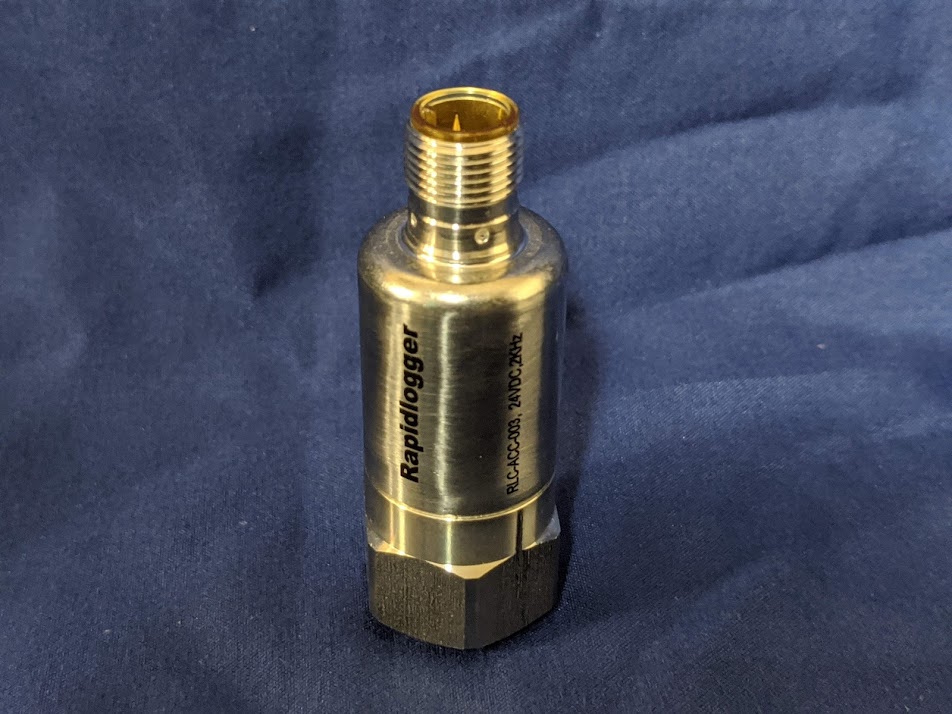

Rapidlogger custom accelerometer

Part Numbers

Sensor Part Number: 00-94117
Cable 25 ft: 00-94118

Specifications

Operating Temperature: -30C to 120C
Operating Enviornment: IP67/IP68
Dat Protocol: Frequency (Modbus optional)
Maximum Cable Length: 150 ft
Accuracy: +/- 3%
Housing Material: Stainless Steel
Maximum Shock: 400g
Maximum Isolation: 2kV
Power: 11-28V DC

Dimensions

Length: 2.5 inch
Diameter: 0.875 inch
Mounting Thread: 1/4-28 UNF
Connector: M18/M12
